Appendix B: Examples

B.6 Line Styles

            PROGRAM EXA_6
      C     USE DISLIN         for Fortran 90!
            DIMENSION X(2),Y(2)
            CHARACTER*6 CTYP(8)
            DATA X/3.,9./CTYP/'SOLID','DOT','DASH','CHNDSH',
     *                        'CHNDOT','DASHM','DOTL','DASHL'/

            CALL SETPAG('DA4P')
            CALL DISINI
            CALL PAGERA
            CALL COMPLX
            CALL CENTER
            CALL CHNCRV('LINE')

            CALL NAME('X-axis','X')
            CALL NAME('Y-axis','Y')

            CALL TITLIN('Demonstration of CURVE',1)
            CALL TITLIN('Line Styles',3)

            CALL GRAF(0.,10.,0.,2.,0.,10.,0.,2.)
            CALL TITLE

            DO I=1,8
              Y(1)=9.5-I
              Y(2)=9.5-I
              NY=NYPOSN(Y(1))
              NX=NXPOSN(1.0)
              CALL MESSAG(CTYP(I),NX,NY-20)
              CALL CURVE(X,Y,2)
            END DO

            CALL DISFIN
            END

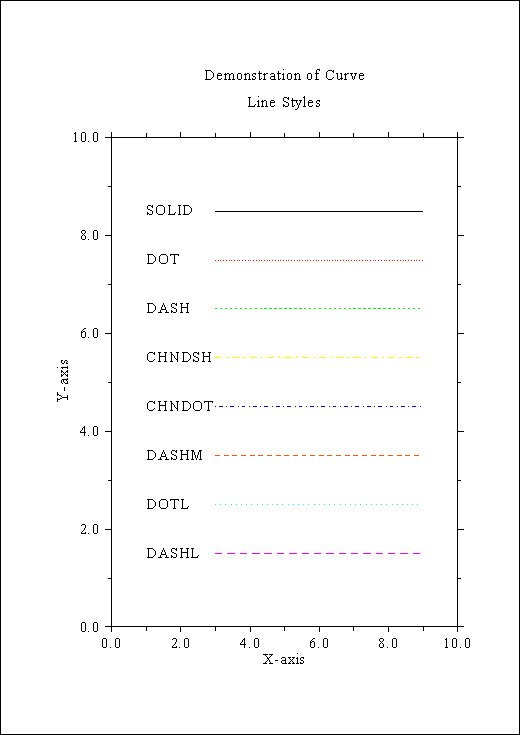

Figure B.6: Line Styles
