Appendix B: Examples

B.5 Interpolation Methods

            PROGRAM EXA_5
      C     USE DISLIN         for Fortran 90!

            DIMENSION X(16), Y(16)
            CHARACTER*8 CPOL(4),CTIT*60

            DATA X/0.,1.,3.,4.5,6.,8.,9.,11.,12.,12.5,13.,15.,16.,
           *       17.,19.,20./
           * Y/2.,4.,4.5,3.,1.,7.,2.,3.,5.,2.,2.5,2.,4.,6.,5.5,4./
           * CPOL/'SPLINE','BARS','STEP','LINEAR'/ NYA/2700/

            CTIT='Interpolation Methods'

            CALL SETPAG('DA4P')
            CALL DISINI
            CALL PAGERA
            CALL COMPLX
            CALL INCMRK(1)
            CALL HSYMBL(25)
            CALL TITLIN(CTIT,1)
            CALL AXSLEN(1500,500)
            CALL SETGRF('LINE','LINE','LINE','LINE')

            DO I=1,4
              CALL AXSPOS(350,NYA-(I-1)*500)
              CALL POLCRV(CPOL(I))
              CALL MARKER(0)

              CALL GRAF(0.,20.,0.,5.,0.,10.,0.,5.)
              NX=NXPOSN(1.)
              NY=NYPOSN(8.)
              CALL MESSAG(CPOL(I),NX,NY)
              CALL CURVE(X,Y,16)

              IF(I.EQ.4) THEN
                CALL HEIGHT(50)
                CALL TITLE
              END IF
              CALL ENDGRF
            END DO

            CALL DISFIN
            END

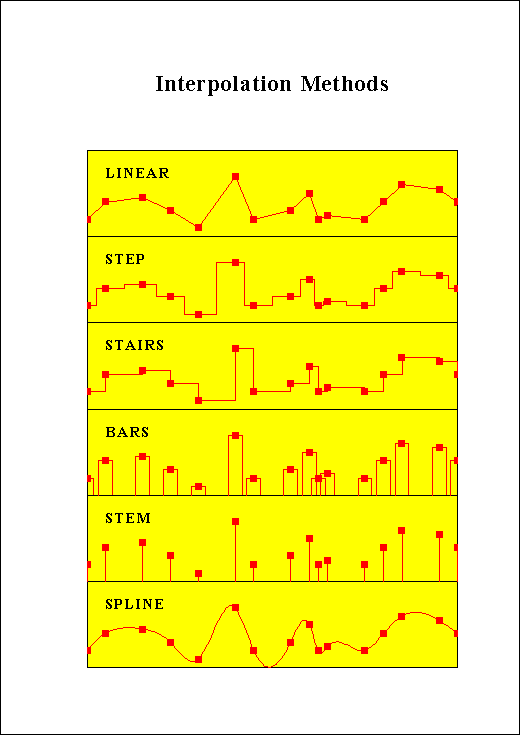

Figure B.5: Interpolation Methods
