B.11 3-D Bar Graph / 3-D Pie Chart

            PROGRAM EXA_11
      C     USE DISLIN         for Fortran 90!
            CHARACTER*80 CBUF
            REAL XRAY(5),Y1RAY(5),Y2RAY(5)
            INTEGER IC1RAY(5),IC2RAY(5)
            DATA XRAY/2.,4.,6.,8.,10./,Y1RAY/0.,0.,0.,0.,0./,
           *     Y2RAY/3.2,1.5,2.0,1.0,3.0/
            DATA IC1RAY/50,150,100,200,175/,
           *     IC2RAY/50,150,100,200,175/

            CALL METAFL('POST')
            CALL SETPAG('DA4P')
            CALL DISINI
            CALL PAGERA
            CALL HWFONT

            CALL TITLIN('3-D Bar Graph / 3-D Pie Chart', 2)
            CALL HTITLE(40)

            CALL SHDPAT(16)
            CALL AXSLEN(1500,1000)
            CALL AXSPOS(300,1400)

            CALL BARWTH(0.5)
            CALL BARTYP('3DVERT')
            CALL LABELS('SECOND','BARS')
            CALL LABPOS('OUTSIDE','BARS')
            CALL LABCLR(255,'BARS')
            CALL GRAF(0.,12.,0.,2.,0.,5.,0.,1.)
            CALL TITLE
            CALL COLOR('RED')
            CALL BARS(XRAY,Y1RAY,Y2RAY,5)
            CALL ENDGRF

            CALL SHDPAT(16)
            CALL LABELS('DATA','PIE')
            CALL LABCLR(255,'PIE')
            CALL CHNPIE('NONE')
            CALL PIECLR(IC1RAY,IC2RAY,5)
            CALL PIETYP('3D')
            CALL AXSPOS(300,2700)
            CALL PIEGRF(CBUF,0,Y2RAY,5)
            CALL DISFIN
            END

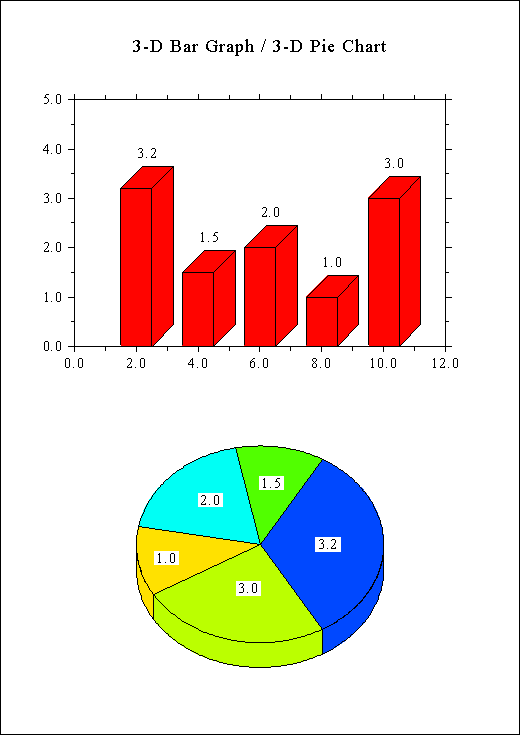

Figure B.11: Demonstration of CURVE
