Appendix B: Examples

B.10 Shading Patterns (PIEGRF)

            PROGRAM EXA_10
      C     USE DISLIN         for Fortran 90!
            DIMENSION XRAY(18)
            CHARACTER*60 CTIT,CBUF*36,CSTR*2
            DATA XRAY/18*1./

            CTIT='Shading Patterns (PIEGRF)'

            CALL SETPAG('DA4P')
            CALL DISINI
            CALL PAGERA
            CALL COMPLX

            CALL AXSPOS(250,2700)
            CALL AXSLEN(1600,2200)
            CALL TITLIN(CTIT,3)
            CALL HEIGHT(50)

            CALL LEGINI(CBUF,18,2)

            DO I=1,18
              WRITE(CSTR,'(I2)') I-1
              CALL LEGLIN(CBUF,CSTR,I)
            END DO

            CALL LABELS('NONE','PIE')
            CALL PIEGRF(CBUF,1,XRAY,18)
            CALL TITLE

            CALL DISFIN
            END

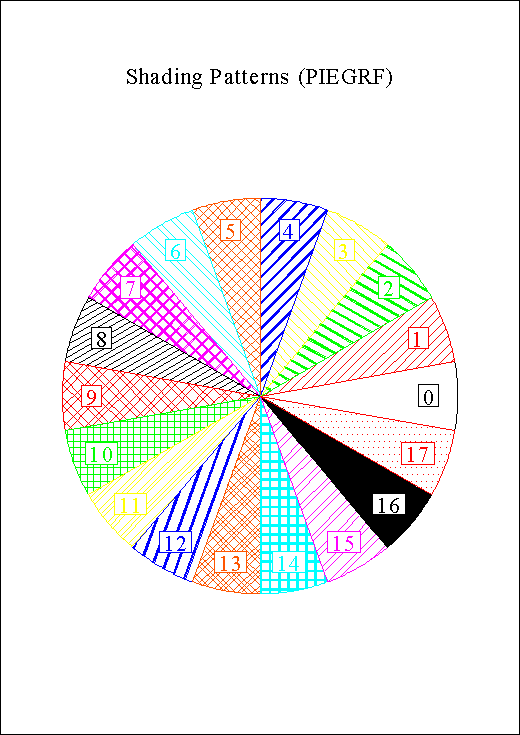

Figure B.10: Shading Patterns
