B.8 Shading Patterns (AREAF)

            PROGRAM EXA_8
      C     USE DISLIN         for Fortran 90!
            DIMENSION IXP(4),IYP(4),IX(4),IY(4)
            CHARACTER*60 CTIT,CSTR*2
            DATA IX/0,300,300,0/IY/0,0,400,400/

            CTIT='Shading Patterns (AREAF)'

            CALL DISINI
            CALL PAGERA
            CALL COMPLX

            CALL HEIGHT(50)
            NL=NLMESS(CTIT)
            NX=(2970-NL)/2
            CALL MESSAG(CTIT,NX,200)

            NX0=335
            NY0=350

            DO I=1,3
              NY=NY0+(I-1)*600
              DO J=1,6
                NX=NX0+(J-1)*400
                II=(I-1)*6+J-1
                CALL SHDPAT(II)
                WRITE(CSTR,'(I2)') II

                DO K=1,4
                  IXP(K)=IX(K)+NX
                  IYP(K)=IY(K)+NY
                END DO
                CALL AREAF(IXP,IYP,4)

                NL=NLMESS(CSTR)
                NX=NX+(300-NL)/2
                CALL MESSAG(CSTR,NX,NY+460)
              END DO
            END DO

            CALL DISFIN
            END

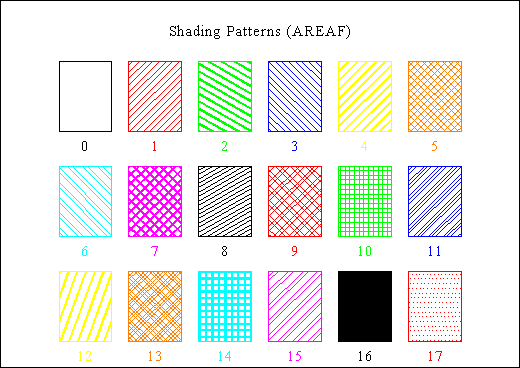

Figure B.8: Shading Patterns
