13.7 Examples

            PROGRAM EX13_3
            DIMENSION NXA(4),NYA(4),XPOL(4),YPOL(4)
            CHARACTER*60 CTIT
            DATA NXA/200,1150,200,1150/NYA/1600,1600,2700,2700/
            DATA XPOL/0.,0.,0.,0./YPOL/0.,45.,90.,-45./

            CTIT='Azimuthal Lambert Projections'

            CALL SETPAG('DA4P')
            CALL DISINI
            CALL PAGERA
            CALL COMPLX

            CALL HEIGHT(50)
            NL=NLMESS(CTIT)
            NX=(2250-NL)/2.
            CALL MESSAG(CTIT,NX,300)

            CALL AXSLEN(900,900)
            CALL PROJCT('LAMBERT')

            DO I=1,4
              CALL AXSPOS(NXA(I),NYA(I))
              CALL MAPPOL(XPOL(I),YPOL(I))
              CALL GRAFMP(-180.,180.,-180.,30.,-90.,90.,-90.,30.)

              CALL COLOR('GREEN')
              CALL WORLD
              CALL COLOR('FORE')
              CALL GRIDMP(1,1)
              CALL ENDGRF
            END DO

            CALL DISFIN
            END

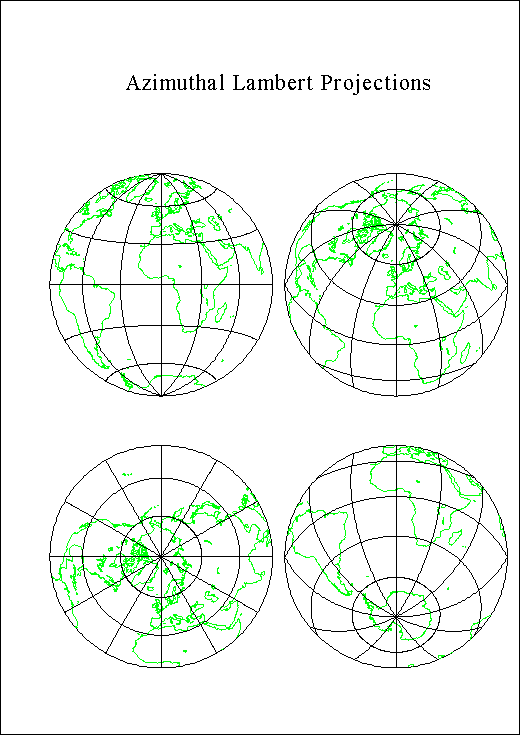

Figure 13.3: Azimuthal Lambert Projections
